Solar PV Modules

SOLAR PV MODULES

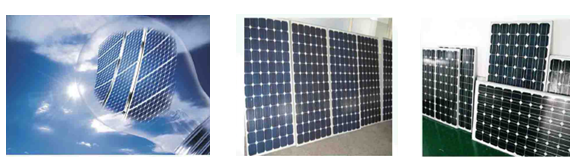

PV module is the core part of solar energy application products. Our crystalline silicon solar PV modules include 5-160W normal PV module, 0.3-5w small power solar panels, and big power PV module (165w, 170w, 175w, 180w, 185w, 190w, 195w, 200w-300w, etc.) for constructing solar energy power station.

Our supply: we have a monthly output of 3mw, and our modules use the best solar sells like Q cell etc. There are 3 manufacturing bases of modules in our company.

Minimum order quantity is 100kw.

Terms of Payment: T/T, L/C.

Lead Time: usu. 1 month for order of 300,000 watt; for larger quantities, please contact us to decide the exact lead time.

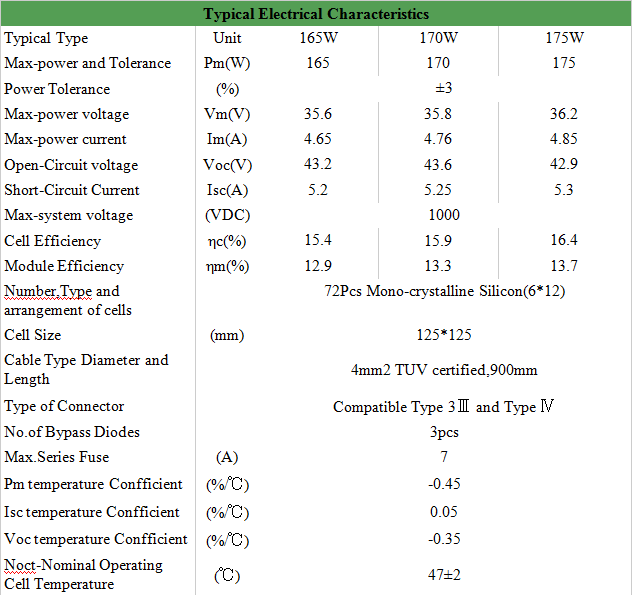

SN Big power PV module for Solar energy power station: SNE-160M solar module series: SNE-160M solar module is connected in series by 72 pieces of 125mm x 125mm crystalline silicon cells. The products performance is produced according to IEC61215:1993 international standard, SN-160M solar modules include 165W, 170W, 175W etc specs. It can also be tailored to special requirements of customers. See the below table for detain specifications.

 MECHANICAL CHARACTERISTICS

Our PV module is produced strictly according to IEC61215 international standard, and quality control according to ISO-9001:2000. All our PV modules have passed CE and TUV certificates.
